OUR PHARMACEUTICAL & BIOTECHNOLOGICAL RANGE BEST SELLERS
Presentation of the bestselling products in our pharmaceutical and biotechnological range :
Béné Inox proposes parts with two different types of surface finish :
- SF1 : mechanical polishing which gives parts a "brushed" look.
- SF4 : electropolishing which gives parts a "shiny" look.
1- CLAMP models
Ferrules types
Long CLAMP ferrule for welding | model 8003 - (ASME BPE : DT-4.1.4-1)
CLAMP ferrule for welding | model 8004 - (ASME BPE : DT-4.1.4-1)
These two ferrule types can be orbital welded as they have sufficiently long welding sections. These parts are available in diameters from 1/4" to 4" included. Their thickness varies between 0.89 and 2.11mm depending on their diameter.
Short CLAMP ferrule for welding | model 8005 - (ASME BPE : DT-4.1.4-1)
On the other hand, short ferrules should be welded manually. These parts are available in diameters from 1/4" to 4" included, their thickness varies between 0.89 and 2.11mm depending on their diameter.
Articulated CLAMP collars
TThe objective of this type of collar is to reduce product retention. They also have full wing handles to make sure that there are not any areas that are difficult to clean.
Double articulated collars also exist, they are even easier to use and fit extremely well around the outside of ferrules.
- Double pivot Clamp | model 8001
- Simple pivot Clamp | model 8002
Bolted HP CLAMP collar | model 63445
This type of collar has two brass clamp nuts to make sure that all ptightening forces are perfectly spread out through it.
This keeps the two ferrule faces in parallel and means that this collar can withstand higher pressures than standard collars.
Depending on the collar's diameter it can withstand a maximum nominal pressure of up to 83 bars.
The clamp nuts are made from brass to avoid the risk of seizing.
CLAMP T with short sleeve | model 8024 - (ASME BPE: DT-4.1.2-5)
This T has 3 ends that can be connected with CLAMP connectors. Its central end is shorter so that it takes up less space making it easier to assemble on to certain pieces of equipment. Model DT-4.1.2-5 complies with the ASME BPE standard.
Forged CLAMP reducers
Forging is used to produce high quality parts which are more resistant than parts which are made through pressing or moulding processes.
We sell the following forged products :
- Forged concentric CLAMP reducer | model 8045 - (ASME BPE : DT-4.1.3-3)
- Forged eccentric CLAMP reducer | model 8055 - (ASME BPE : DT-4.1.3-3)
2- Parts for welding
88° elbow for welding | model 8018
This elbow is available in diameters from 1.2" to 4" included. Its thickness varies between 1.65 and 2.11mm depending on its diameter.
92° elbow for welding | model 8035
Like the 88° elbow, this model is proposed in diameters from 1/2" to 4" included. Its thickness also varies between 1.65 and 2.11mm depending on its diameter.
With their 88° and 92° bends, these two elbows can be used to facilitate natural fluid flow in piping systems. The following formula can be used to calculate an elbow's size:
- Vertical element : Lv = L
- Horizontal element : Lh = (L/cos(2°)) + (L.tan(2°))
3- Gaskets
ASME BPE Clamp gasket | model 8010
The ASME BPE Clamp gasket is available in EPDM, PTFE, FKM and platinum silicon.
The platinum silicone gasket is platinum hardened. Platinum is a neutral metal so it will not transfer any volatile organic compounds (VOCs) to the gasket or release these into the fluids that are transported through it.
4- Pipes
ASME BPE pipes | model 8080
This pipe is made of 316L stainless steel UNS S31603. It is extruded and seamless and available in 6m lengths for all dimensions below 1".
For dimensions above 1'' it is rolled/welded and available in 6.1m lengths.
This pipe is available in diameters from 1/4" to 4" included, it has a thickness from 0.89 to 2.11mm depending on its diameter.
5- Tank Accessories
- Front-flush aseptic flange | model 8006
A front-flush aseptic flange can be welded onto a tank so that you can connect removable, easy to use and hygienic CLAMP connectors to it.
This makes it possible to connect the following products :
- Sampling cock | model 8078
This type of valve can be connected onto a front-flush aseptic flange.
It can be used to take samples after being connected through a simple CLAMP connector or welding.
It has two outlets so it can be cleaned easily without contaminating the liquid that is stored in the tank. Our sampling cocks are available with PFTE or EPDM gaskets.
- Empty stainless steel pressure gauge with diaphragm seal separator | model 7319
This model is certified by the FDA and is specifically design for use in the pharmaceutical and biotechnological industries.
This pressure gauge includes a CLAMP ferrule and a stainless steel diaphragm seal separator.
Its stainless steel diaphragm seal separator protects this pressure gauge if the expected pressure levels are exceeded .
It is easy to carry out maintenance on the separator and it can be placed in direct contact with a fluid to measure pressure levels.
- Manual tank bottom diaphragm valve for butt welding (BW) | model 8075
This valve has been designed to facilitate fluid flow , it is installed at the lowest point of a tank.
It makes it easy to empty a tank while avoiding any retention zones, making the tank easier to clean .
However, the valve itself cannot be connected to the tank via a front-flush aseptic flange, it must be welded to the bottom of the tank.
6- Complementary products for the pharmaceutical and biotechnology industries

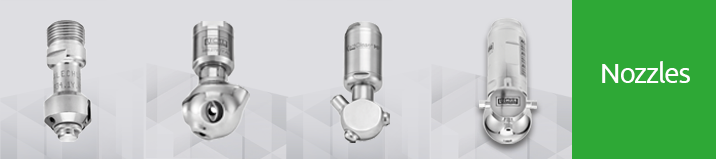

Cleaning nozzles
You can complete your installations by adding cleaning nozzles for tank cleaning processes.
You can choose the ideal nozzle for your tank by taking into account the degree of soiling you expect.
Discover Béné Inox's range of cleaning nozzles:
- Flat jet cleaning nozzle - free rotation | model 8081
This is an intermediate model, between rinsing and cleaning. It comes under class 2 on the cleaning class scale (which goes from 1 to 5).
- Beam jet cleaning nozzle - free rotation | model 8082
This cleaning nozzle comes under class 3 on the cleaning class scale (which goes from 1 to 5) and is already able to provide a good level of cleaning
- Intense flat jet cleaning nozzle \u150? controlled rotation | model 8083
This cleaning nozzle provides class 4 cleaning and is ideal if your tank requires deep cleaning.
- Intense flat jet cleaning nozzle - gear controlled rotation | model 8084
This model is rated class 5 and makes it possible to successfully clean even the most viscous fluids and large diameter tanks.
Diaphragm valves
Diaphragm valves can be used to regulate fluid flow . Their body can be disassembled which makes them easier to clean. Béné Inox also stocks spare diaphragms in EPDM or EPDM coated with TFM | model 8076.
We propose the following diaphragm valve models :
Full stainless steel diaphragm valves
- Stainless steel pneumatic diaphragm valve for butt welding (BW) | model 8060
- Stainless steel pneumatic diaphragm valve with CLAMP ferrule | model 8061
Pneumatic diaphragm valves
- Pneumatic diaphragm valve for butt welding (BW) - PP housing | model 8062
- Pneumatic diaphragm valve with CLAMP connector - PP housing | model 8063
Manual diaphragm valves
- Manual diaphragm valve with CLAMP ferrule - PC handle | modèle 8071
7- Complementary products, by series :
- EPDM filtering CLAMP gasket | model 63464.
This gasket is designed to stop any foreign bodies inside a process.
So, using this product can reduce the amount of maintenance that you need to carry out, protect pumps and reduce wear.
- In-line filter with CLAMP ends and NBR gaskets | model 63473.
This filter collects foreign bodies and facilitates cleaning as you can remove the filtering element without having to disassemble any piping.
- EPDM CLAMP gasket with PTFE sleeve | model 63426.
This gasket is adapted for use at temperatures from -30°C to 150°C included.
Due to the PTFE's chemical compatibility and the EPDM's elasticity it is ideal for aggressive or food & beverage making processes.
Laboratory accessories
- Scoop with handle | model 65511
- Ladle | model 65551
- Skimmer | model 65571
- Measuring jug with handle | model 65591
- Measuring cylinder | model 65661
Pipe holders
Hexagonal pipe holders are designed for use with round pipes . This type of pipe holder focuses tightening forces on certain points only, thus limiting the retention of external cleaning liquids
- Articulated hexagonal pipe holder with fixing shaft | model 72115. This pipe holder can be welded onto a rail or a structural pipe and be used to maintain a pipe in position.
- Articulated hexagonal pipe holder | model 72116. This pipe holder is very easy to use.
- 2 screw hexagonal pipe holder | model 72117.
Electronic pressure switch with stainless steel diaphragm seal separator | model 7380
An electronic pressure switch is a pressure sensor which converts pressure measurements into electronic signals so that they can be easily transmitted , as required. It contains a digital display, an 4-20mA output and 2 PNP contacts.
It is composed of a digital display, a 4-20mA output, and 2 PNP contacts.
Do you need any help?
>> Please contact us for more information on +334 78 90 48 22 or by filling in our request for information form here
