WASHER FOR BOLT WITH CLAMPING SLEEVE - STAINLESS STEEL A2 - DIN 7349 INOX A2 - DIN 7349 (Model : 216534)

216534 WASHER FOR BOLT WITH CLAMPING SLEEVE - STAINLESS STEEL A2 - DIN 7349 INOX A2 - DIN 7349

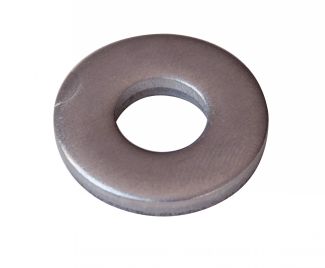

Photos

Washer for bolt with clamping sleeve - stainless steel a2 - din 7349 inox a2 - din 7349

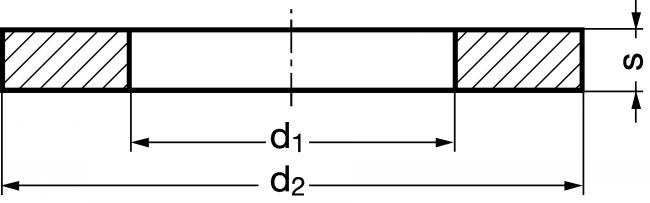

Dessins techniques

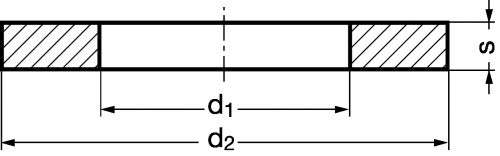

Washer for bolt with clamping sleeve - stainless steel a2 - din 7349 inox a2 - din 7349 (Schema)
EXAMPLE OF ORDER : Référence
216534-3

Information

Files

Schéma 0

Quantity

CAD
+
CAD
D
NC
216534-3
3
3,2
9
1
CAD
D
NC
216534-4
4
4,3
12
1,6
CAD
D
NC
216534-5
5
5,3
15
2
CAD
D
NC
216534-6
6
6,4
17
3
CAD
D
NC
216534-8
8
8,4
21
4
CAD
D
NC
216534-10
10
10,5
25
4
CAD
D
NC
216534-12
12
13
30
6
CAD
D
NC
216534-14
14
15
36
6
CAD
D
NC
216534-16
16
17
40
6
CAD
D
NC
216534-18
18
19
44
6
CAD
D
NC
216534-20
20
21
44
8
CAD
D
NC
216534-24
24
25
50
10
CAD
NC
NC
216534-22
22
23
50
8
