WELDING SANITARY 3-WAY-T BALL VALVE - STAINLESS STEEL CF3M Inox CF3M (316L) ASME BPE (Model : 8088)

8088 WELDING SANITARY 3-WAY-T BALL VALVE - STAINLESS STEEL CF3M Inox CF3M (316L) - ASME BPE

Photos

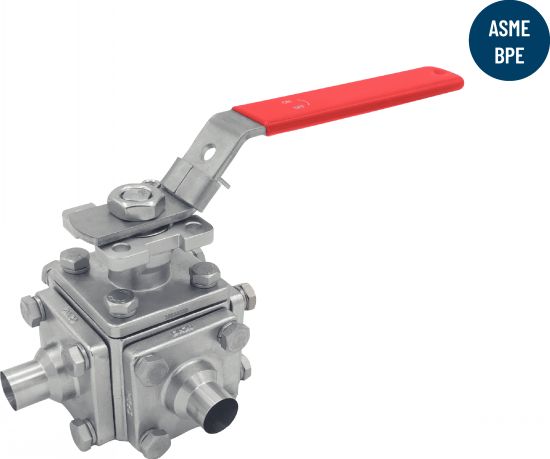

Welding sanitary 3-way-t ball valve - stainless steel cf3m

Dessins techniques

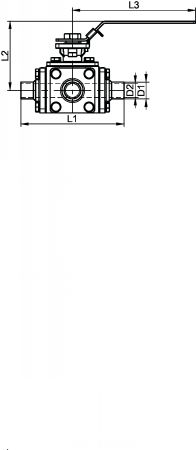

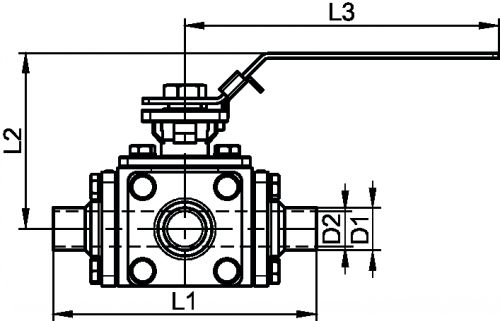

Welding sanitary 3-way-t ball valve - stainless steel cf3m (Schema)

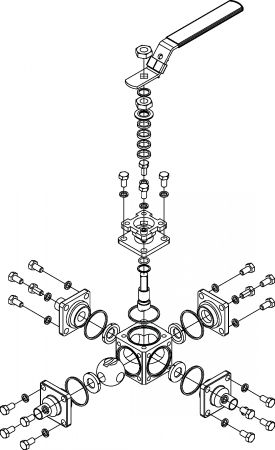

Welding sanitary 3-way-t ball valve - stainless steel cf3m (Schema #2)
See related products
EXAMPLE OF ORDER : Référence
680884-050

Information

Files

Schéma 0

Schéma 1

Quantity

CAD
+

NC
NC
680884-050
SF4
1/2"
12,7
9,4
147,0
93,8
187,0
3,1

NC
NC
680884-075
SF4
3/4"
19,05
15,8
147,0
93,8
187,0
3,1

NC
NC
680884-100
SF4
1"
25,4
22,1
156,8
100,9
187,0
6,5

D
NC
680884-150
SF4
1"1/2
38,1
34,8
188,8
114,2
190,5
7,2

NC
NC
680884-200
SF4
2"
50,8
47,5
229,0
168,0
293,3
17
