BUTTERFLY VALVE WITH LOCATING HOLES AND HANDWEEL GEAR REDUCER - GJS500-7 CAST IRON BODY - CF8M STAINLESS STEEL BUTTERFLY - SILICONE GASKET CORPS FONTE GJS500-7 - PAPILLON INOX CF8M - JOINT SILICONE ALIMENTAIRE (Model : 58414V)

58414V BUTTERFLY VALVE WITH LOCATING HOLES AND HANDWEEL GEAR REDUCER - GJS500-7 CAST IRON BODY - CF8M STAINLESS STEEL BUTTERFLY - SILICONE GASKET CORPS FONTE GJS500-7 - PAPILLON INOX CF8M - JOINT SILICONE ALIMENTAIRE

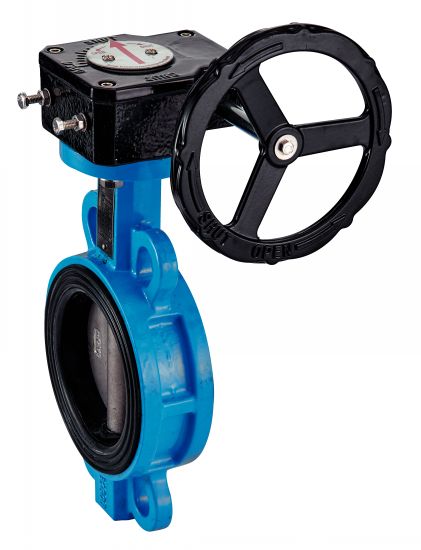

Photos

Vanne papillon à oreilles de centrage

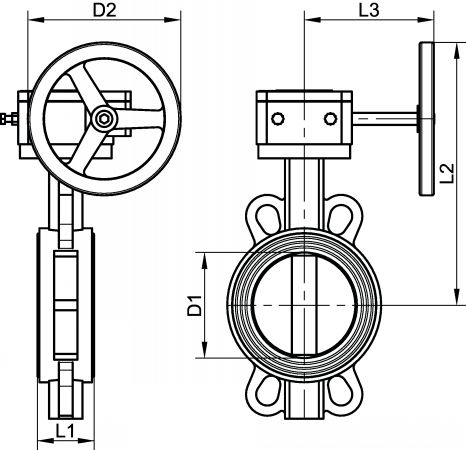

Dessins techniques

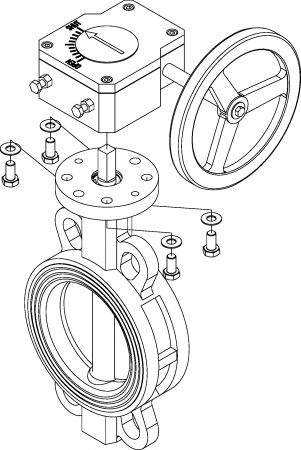

Vanne papillon à oreilles de centrage - Schéma
See related products
EXAMPLE OF ORDER : Référence
458414-50V

Information

Files

Schéma 0

Quantity

CAD
+
CAD
NC
NC
458414-50V
Silicone
50
2"
16
51
100
42,5
203
105

CAD
D
NC
458414-65V
Silicone
65
2"1/2
16
63
100
45,5
209
105

CAD
NC
NC
458414-80V
Silicone
80
3"
16
77
100
46
216
105

CAD
D
NC
458414-100V
Silicone
100
4"
16
102
150
52
264
130

CAD
NC
NC
458414-125V
Silicone
125
5"
16
122
150
55,5
285
130

CAD
D
NC
458414-150V
Silicone
150
6"
16
154
150
55,5
298
130

CAD
D
NC
458414-200V
Silicone
200
8"
16
200
270
60
395
210

CAD
D
NC
458414-250V
Silicone
250
10"
10
249
270
67
441
210

CAD
NC
NC
458414-300V
Silicone
300
12"
10
300
270
77
487
210
